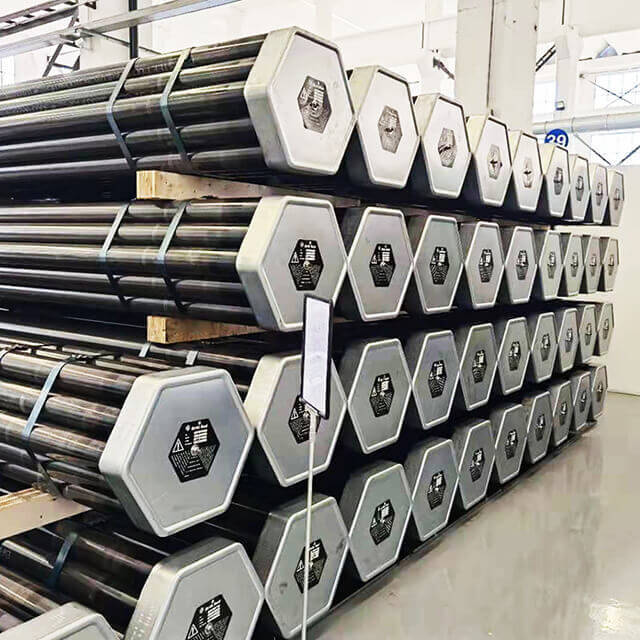

AW Casing

Application:
AW casing is engineered to surpass expectations for a casing and features quicker make-up and easier break-out characteristics for wireline core drilling.
Material: 4130 / 30CrMnSi
O.D: 57.1mm
I.D: 48.4mm

Description

For wireline coring exploration, application of casing pipe is necessary. In wireline drilling tools working project, larger sized drill rods are usually selected as casings. But for economical consideration, using drill rods as casing is worn out very quickly, so casing pipes are introduced as an alternative option. Our company recommended W series casing, which are re-usable, effective and economical. Casings are made of high quality tubing, and they are connected tightly using pin and box thread .W series casings also have matched casing drive shoes. Normally,? AW BW NW HW and PW are available for a selection.

Product name Product code Description O.D（mm） I.D（mm） Net weight（kg） Gross weight（kg） Thread pitch（mm） Outer thread length（mm） Product length（mm）
AW-10' 20550101 10' 57.1 48.4 17.27 6.35 57.15 3048
AW-3M 20550102 3M 57.1 48.4 17 6.35 57.15 3000
AW-5' 20550103 5' 57.1 48.4 8.64 6.35 57.15 1524
AW-1.5M 20550104 1.5M 57.1 48.4 8.5 6.35 57.15 1500

Product name Label color Package L (mm) Package W (mm) Package H (mm) Weight of each bundle (kg)
AW-10' Red 3150 305 279 328.13
AW-3M Red 3100 305 279 323
AW-5' Red 1620 305 279 164.16
AW-1.5M Red 1600 305 279 161.5
