Overshot Assembly HWL

Description

Overshot ( BWL, BWL-U, NWL, NWL-U, HWL, HWL-U, HWL-3, PWL, PWL-3, BTW, NTW, HTW )

The coring system produced by our company allows the underground core to be retrieved from the hole by the fishing tool without lifting out the drill pipe, and then the entire inner pipe can be retrieved for sampling and analysis. Improve the productivity of the work site and ensure the safety of the core while drilling.

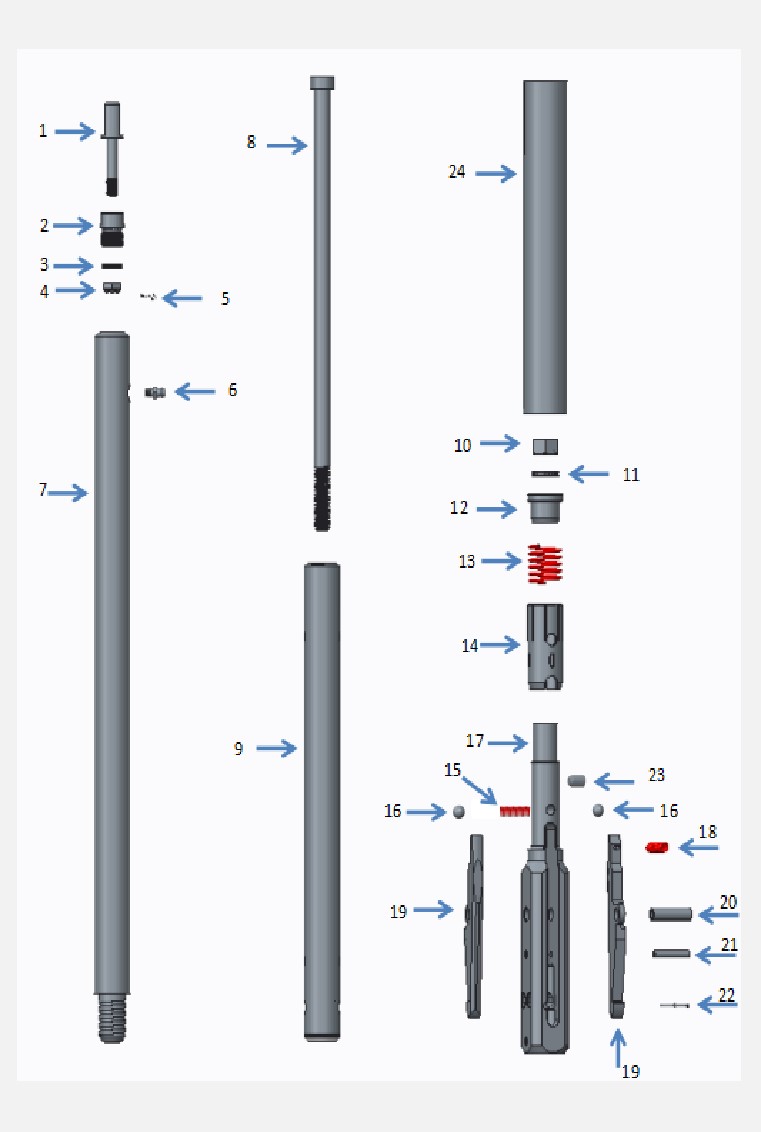

No. Code Description Qty
0 20703100 HAU/HWL(HQ) EZY Lock Overshot Assembly 1
1 20701101 Bolt, Cable Swivel Eye 1
2 20701102 Cable Swivel Collar 1
3 20701103 Thrust Bearing 1
4 20701104 Castle Nut 1
5 20701105 Cotter Pin 1
6 20701031 Grease Fitting 1
7 20702107 Cable Swivel Body 1
8 20702108 Jar Staff 1
9 20702109 Jar Tube 1
10 20702110 Hex Nut 9/16 UNC 1
11 20702111 Washer Nord-Lock 1
12 20702112 Cap, EZY Lock Over-Shot 1
13 20702113 Spring, EZY Lock Over-Shot 1
14 20702114 Sleeve, EZY Lock Over-Shot 1
15 20702115 Compression Spring 1
16 20701116 Ball 11/32" 2
17 20703117 EZY Lock Over-Shot Head 1
18 20702118 Compression Spring 1
19 20702119 Lifting Dog 2
20 20704120 Plain Pin, 1/2"x2-1/8" 1
21 20703121 Spring Pin, 1/4"x2" 1
22 20703122 Locking Pin 1
23 20701123 Nylok Set Screw, 3/8 UNF x 3/4 1
24 20702124 Locking Sleeve 1
