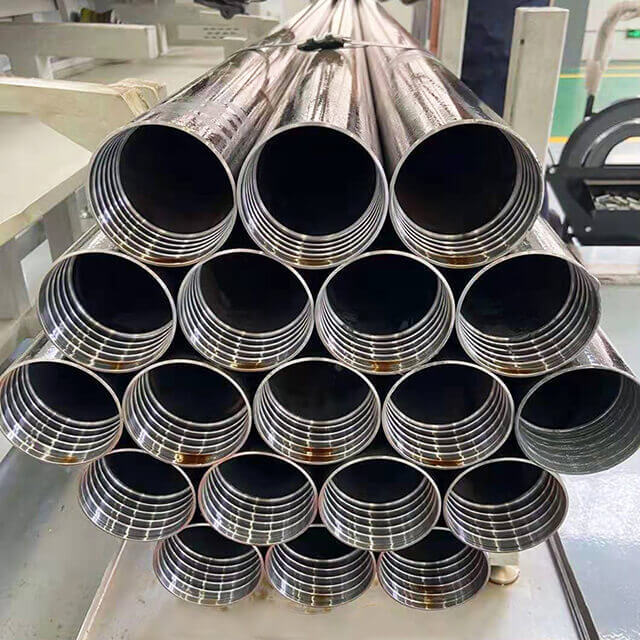

PW Casing

PW casing is engineered to surpass expectations for a casing and features quicker make-up and easier break-out characteristics for wireline core drilling.

Material : 4130 / 30CrMnSi
O.D : 139.7mm
I.D : 127mm

Description

For wireline coring exploration, application of casing pipe is necessary. In wireline drilling tools working project, larger sized drill rods are usually selected as casings. But for economical consideration, using drill rods as casing is worn out very quickly, so casing pipes are introduced as an alternative option. Our company recommended W series casing, which are re-usable, effective and economical. Casings are made of high quality tubing, and they are connected tightly using pin and box thread .W series casings also have matched casing drive shoes. Normally, AW BW NW HW and PW are available for a selection.

Product name Product code Description O.D (m) I.D (mm) Net weight (kg) Gross weight (kg) Thread pitch (mm) Outer thread length (mm) Product length (mm)
PW-10' 20550501 10' 139.7 127 65.33 6.35 82.55 3048
PW-3M 20550502 3M 139.7 127 64.3 6.35 82.55 3000
PW-5' 20550503 5' 139.7 127 32.66 6.35 82.55 1524
PW-1.5M 20550504 1.5M 139.7 127 32.15 6.35 82.55 1500
Product name Label color Package L (mm) Package W (mm) Package H (mm) Weight of each bundle (kg)
PW-10' Red 3150 457 406 457.31
PW-3M Red 3100 457 406 450.1
PW-5' Red 1620 457 406 228.62
PW-1.5M Red 1600 457 406 225.05
